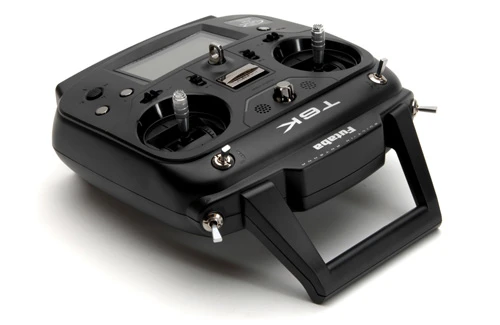

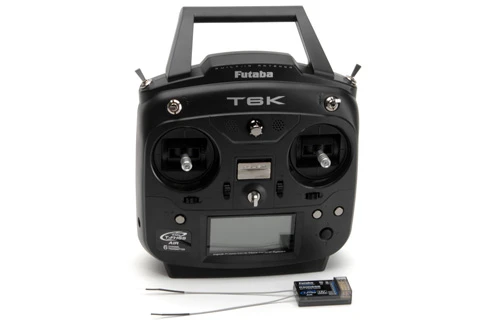

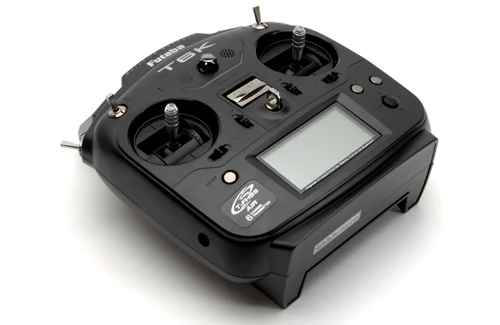

The new Futaba T6K is the perfect entry/sport level radio for aircraft and helicopter pilots. This stylish, stealth looking transmitter features a clean in-built aerial, easy jog dial programming and a backlit LCD screen for ease of use, however the T6K is not only about style, it also includes many features you would normally expect in high-end transmitters.

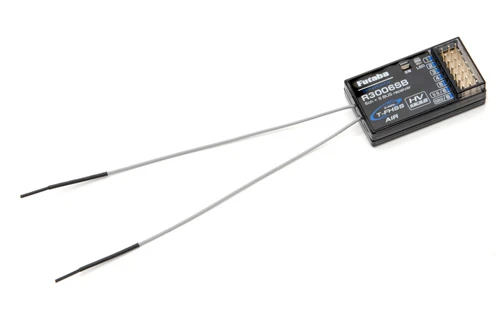

Designed to take full advantage of Futaba’s popular T-FHSS telemetry system so a wide array of data can be monitored in flight (on screen or using the in-built speaker) including as standard receiver battery voltage and external battery voltage, whilst temperature, RPM, altitude and even a variometer sensors are available as options . The T6K is also capable of using S.Bus/S.Bus2 servos which can be easily programmed via the transmitter, whilst these and standard servos can all be used with the supplied R3006SB receiver.

• S-FHSS/T-FHSS selectable
• Telemetry system (T-FHSS) with data speech function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer
• Built-in antenna
• S.Bus/S.Bus2 servo setting functions programmable through the transmitter
• Preset vibration alarms
• 30 model memory
• 8-character model/user naming
• Programmable mixes for airplanes, helicopters, gliders and multi-rotors
• Digital trims with variable step settings
• Adjustable stick length and tension
• Changeable switch/VR position and AUX channel function
• Throttle position warning
• Backlit 128×64 DOT LCD screen with adjustable display contrast
• Software updateable through the CIU-2
• Screen Lock
• Earphone/S.Bus/Trainer jacks
• Assignable switches (three 3-position, one 2-position)
• Range Check
• Program navigation bay with jog dial, +/- pads and end pad
• Data reset
• Model copy
• Selectable model type
• Fail Safe
• End Points
• Trim/Trim Resets/Trim Steps
• Sub Trim
• Servo Reversing
• Parameter functions
• Servo monitor/Test
• Wireless model data transfer
• Timer-System and Model (Up/Down)
• Trainer system

Airplane Functions
• Wing Type (5-wing, 2-tail)
• Throttle Cut
• Dual Rate/Expo
• Throttle Curve
• Idle down
• Gyro
• Aileron differential
• V-Tail
• Camber
• Air Brake
• Elevator-to-Flap mixing
• Flap-to-Elevator mixing
• Elevon mixing

Glider Functions
• Wing Type (5-Wing, 2-Tail)
• Condition select
• Dual Rate/Expo
• Motor switch
• Gyro
• Aileron Differential
• V-tail
• Butterfly mixing
• Trim mixing
• Elevator-to-Camber mixing
• Camber mixing
• Aileron-to-Camber mixing

Helicopter Functions
• Swash type (6)
• Condition Select
• Throttle Cut
• Dual Rate/Expo
• Trim Offset
• Delay
• Gyro mixing
• Swash AFR
• Swash mixing
• Throttle Curve (5-point)
• Pitch Curve (5-point)
• Pitch-to-Rudder mixing
• Throttle Hold
• Hovering throttle
• Hovering pitch

Multicopter Functions
• Flight Mode
• Center alarm
• Dual Rate/Expo
• Throttle Curve
• Throttle Delay
• Gyro

Required for use: 4x ‘AA’ batteries for transmitter & suitable Rx battery

Specifications
Audio Jack:	Yes
Dials:	1
Model Memory:	30
Modulation:	Futaba 2.4GHz (T-FHSS, S-FHSS)
Navigation Type:	Jog Dial
Receiver:	Futaba R3006SB 2.4GHz T-FHSS (Inc.)
S.BUS:	S.Bus & S.Bus2
SBus Connector:	Yes
Switches:	4
Trainer Connector:	Yes (Square)

Spec

• Brand: Futaba
• Part No: P-CB6K/L
• Barcode: 4513886029714
• Receivers Included: 1
• Frequency: 2.4Ghz
• Channels: 6 Channel
• Format: Stick
