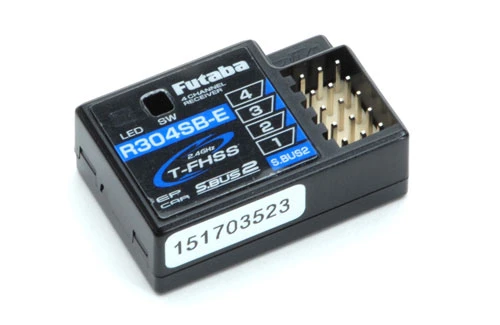

The R304SB-E is a compact little 4 channel receiver using T-FHSS telemetry designed for use with electric cars. Suitable for HV applications the R304SB-E has an operating voltage range of 3.6 up to 8.4v. The R304SB-E has a compact built-in aerial allowing for easy clean installations.

T-FHSS is a variation of Futaba’s FHSS technology with the added bonus of telemetry. As standard the receiver will monitor its own voltage and transmit that back to your T-FHSS transmitter. There is also a S.Bus2 port included allowing you to plug in additional futaba telemetry sensors.

• Built-In aerial for clean installations
• Compact size
• T-FHSS telemetry
• Operating voltage of 3.6 – 8.4v
• Weighs only 6.7g!

Specifications
Mode	Normal/High speed mode (Auto Detection)
Modulation	Futaba 2.4GHz T-FHSS
Range	70m (230′) under best conditions
S-Bus	S.BUS2
Weight	6.7g (0.23oz)
Channels	4
Dimensions	35.1 x 23.2 x 12.5mm (1.38 x 0.91 x 0.33″)
Voltage	4.8 – 7.4V

Spec

• Brand: Futaba
• Part No: P-R304SB-E
• Barcode: 4513886026003
• Frequency: 2.4Ghz
• Channels: 4 Channel
