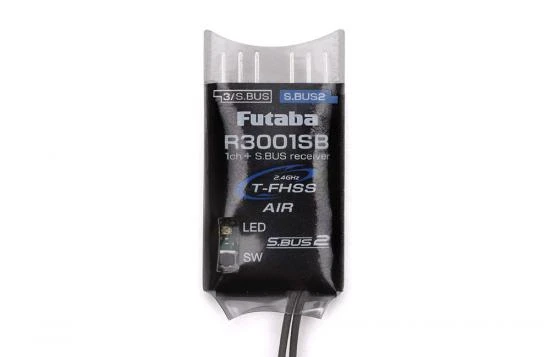

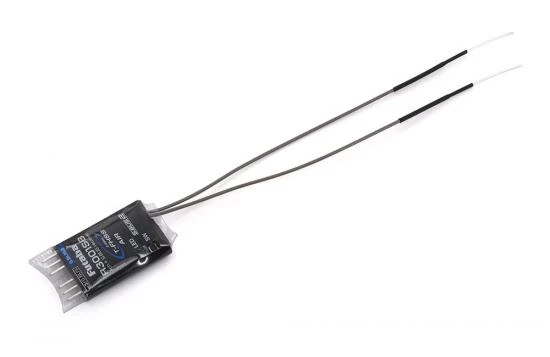

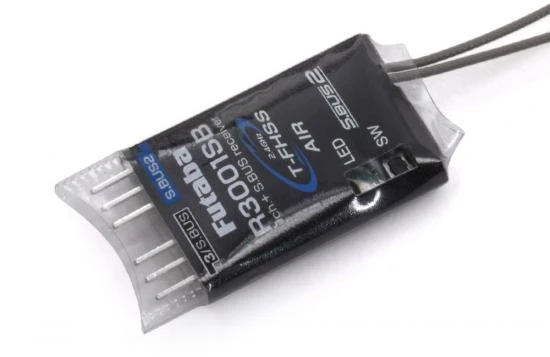

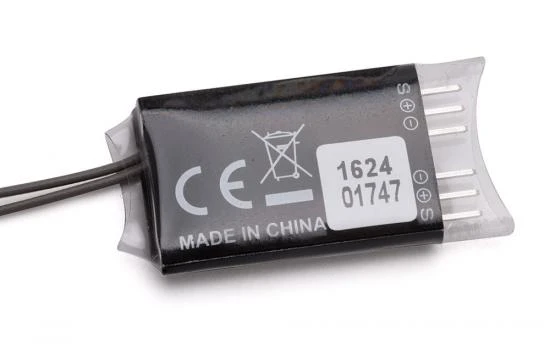

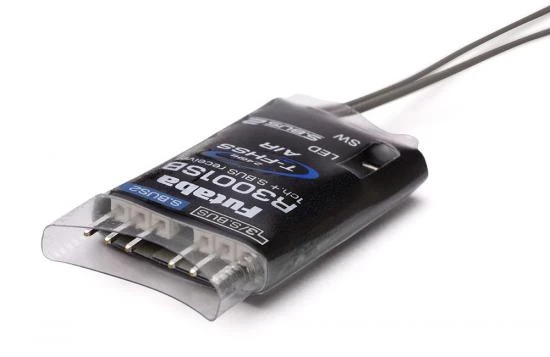

The Futaba R3001SB is a dedicated S.Bus receiver with built-in T-FHSS telemetry making it especially suited to use on multirotor/drone models. The single S.BUS/S.BUS2 wire can connect to most of the popular flight controllers reducing the amount of connections needed for a lighter, simpler, more reliable and cleaner installation. Stripped back to essentials the R3001SB weighs in at only 4.2g thanks to its compact dimensions and heat shrink case. Don’t let the compact size fool you as the R3001SB is capable of the same full range you as any other T-FHSS receiver thanks to the dual diversity antennas.

The R3001SB isn’t limited to just drones as the compact form factor lends itself to many other models (such as helicopter and aircraft) where a compact and neat installation is required taking advantage of Fuaba’s S.BUS technology.

• Secure link using Futaba’s T-FHSS system
• Telemetry capability
• Lightweight (4.2g) and compact design
• Easy bind using bind button
• Easy connection to popular control boards

Specifications
Case	Tough Heatshrink
Modulation	Futaba 2.4GHz T-FHSS
S.BUS	S.BUS & S.BUS2
Weight	4.2g
Voltage	4.8 – 8.4V
Channels	1 (18 S.Bus)
Dimensions	21.1 x 41.8 x 5.3mm

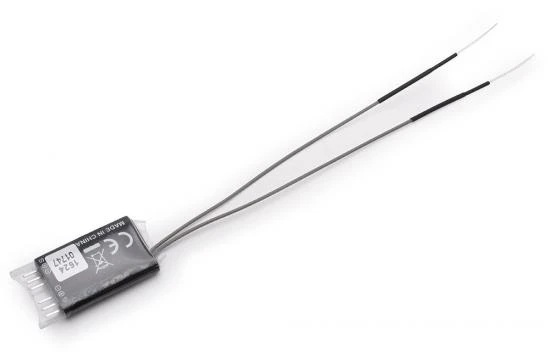

Aerial Length	2 x 145mm

Spec

• Brand: Futaba
• Part No: P-R3001SB
• Frequency: 2.4Ghz
• Channels: 9+ Channel
