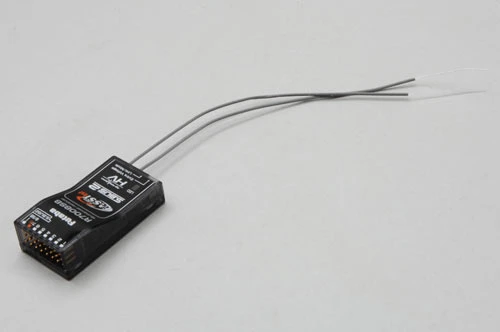

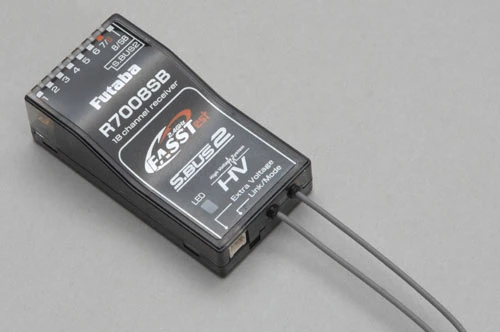

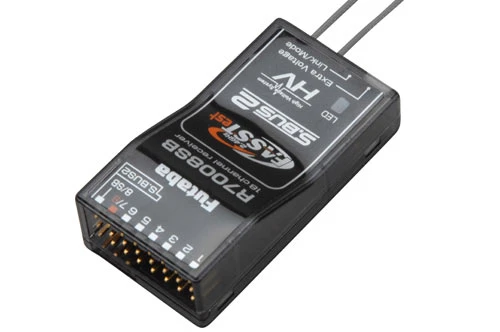

The R7000SB is a FASSTest telemetry enabled receiver, a high-voltage design that operates up to 8 channels using the 8 standard PWM outputs or up to 18 channels (16 proportional + 2 digital) using the S-Bus port.
That means a simpler setup and full support for S-Bus and S-Bus2 servos. As supplied the R7008SB receiver includes integral sensors for receiver voltage, signal strength and external voltage, with further sensors available separately.
• 8 Channel using PWM
• 18 Channel using S.Bus
• Extra voltage port (0 – 70V DC)
• Diversity aerial for optimal reception
• S.Bus & S.Bus2 capability
• High Voltage capable
| Specifications | |
|---|---|
| Fail Safe | Yes |
| Modulation | FASSTest (18ch & 12ch Modes) |
| S.BUS | S.Bus & S.Bus2 |
| Weight | 10.9g (0.38 oz) |
| Channels | 8 PWM (18 S-BUS) |
| Dimensions | 24.9 x 47.3 x 14.3mm |
| Voltage | 3.7 – 7.4V (3.5 – 8.4V Range) |
Spec
- Brand: Futaba
- Part No: P-R7008SB
- Barcode: 4513886023415
- Frequency: 2.4Ghz
- Channels: 9+ Channel
